Australian Made Aluminium Loading Ramps

Name: 3.5 metre - PT mower ramps - 1.5 t capacity - from $1670 inc GST
SKU: 3.5MCPTR1.5T - Ramp specifications below
Price: 1518.18 AUD
Availability: InStock

Manufactured from the highest quality Australian-extruded structural aluminium , our lightweight, portable loading ramps deliver outstanding strength-to-weight performance. Backed by over 30 years of genuine Australian manufacturing experience, every ramp model is engineered and extensively tested in Australia for long term durability, with a safety-focused design that safeguards both users and machinery. Every aluminium section used in our ramps is individually chosen and Webster hardness tested before fabrication, ensuring the highest standards in aluminium quality. Designed for Aussie farmers, contractors, tradies or recreational users and built specifically for Australian conditions. Our Ramps deliver true Australian-made strength, safety and reliability — giving you tougher, longer-lasting ramps you can trust every time you load.

+9

+8

+7

+6

+5

+4

+3

+2

3.5 metre - PT mower ramps - 1.5 t capacity - from $1670 inc GST

Store / Mower Ramps - Heavy Duty

AU$1 518.18

4 payments of AU$379.55 with

Select width:

340 mm track width, 390 mm overall width ( +AU$1 518.18 )

400 mm track width, 450 mm overall width ( +AU$1 609.09 )

Select top plate connection:

Standard: 95 mm top - includes securing pins

Optional: 160 mm top - includes securing pins ( +AU$100.00 )

Select freight option:

Please choose

In stock

Product Details

Ramp Specifications

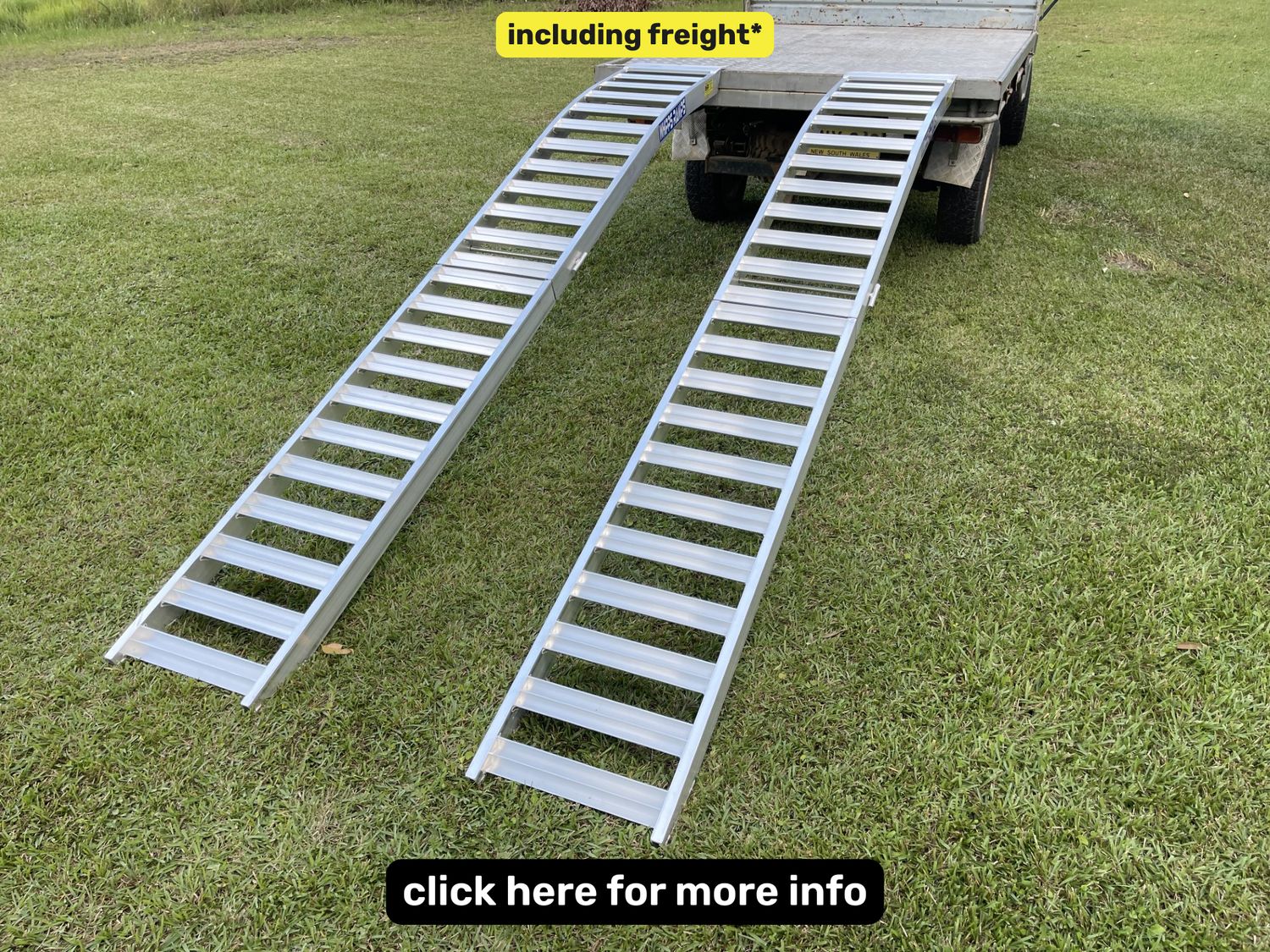

Pair (2) x Ramps – 3.5 metre curved pin-together ramps

Capacity: 1500 kg per pair (750 kg per ramp)
Length: 3.5 metres, includes top plate connection - suit medium/high trailers and trays
Each ramp separates into two sections with pin connection (ramps to be used connected only) approximately 1855 mm
Top plate connection: choose between standard 95 mm or optional 160 mm (in photos)
Width: Choose between 340 mm track and 400 mm track width - custom width also available
Width: select option when buying (width options shown in photos)
Rung position: recessed = 3 mm
Ramp Weight: from 26kg per ramp (13kg per section)
Section Height: 90 mm
Material: Structural-grade aluminium (Australian extruded 6082-T6)
Welding: 5183 structural welding wire
Includes: 2 × securing pins for attaching to your tray, flatbed or trailer
Load zero turn mowers, ride on mowers, low clearance machines, quad bikes and atv's -for higher ute trays and trailers
Manufactured: Australian made – over 30 years of design, testing and fabrication experience

Built to perform in tough Australian conditions and trusted by contractors and machinery operators across the country.

Freight Options

Depot Collection
*Pricing covers collection from freight depots at the listed locations (see freight options/locations - dropdown menu). Some areas incur a surcharge. If your area is not listed please contact us, we freight Australia wide.

Pick Up from Whipps Ramps
Collect directly from our workshop in Cooperabung, NSW and save $$.

Use Your Own Freight Carrier – Surcharge Applies
If you prefer to arrange your own freight, a small handling surcharge applies.

Yes, we can arrange delivery outside of the listed depot locations and we offer Business delivery

Business delivery: we will need to verify address, you'll need a forklift to unload and have standard business operating hours - someone has to be available to unload

For a quote - Call: 02 6585 0944, text: 0481 359 124 or email: ramps@whipps.com.au
