3 m long - nf mower ramps - 800 kg capacity - from $820 inc GST
Ramp Specifications

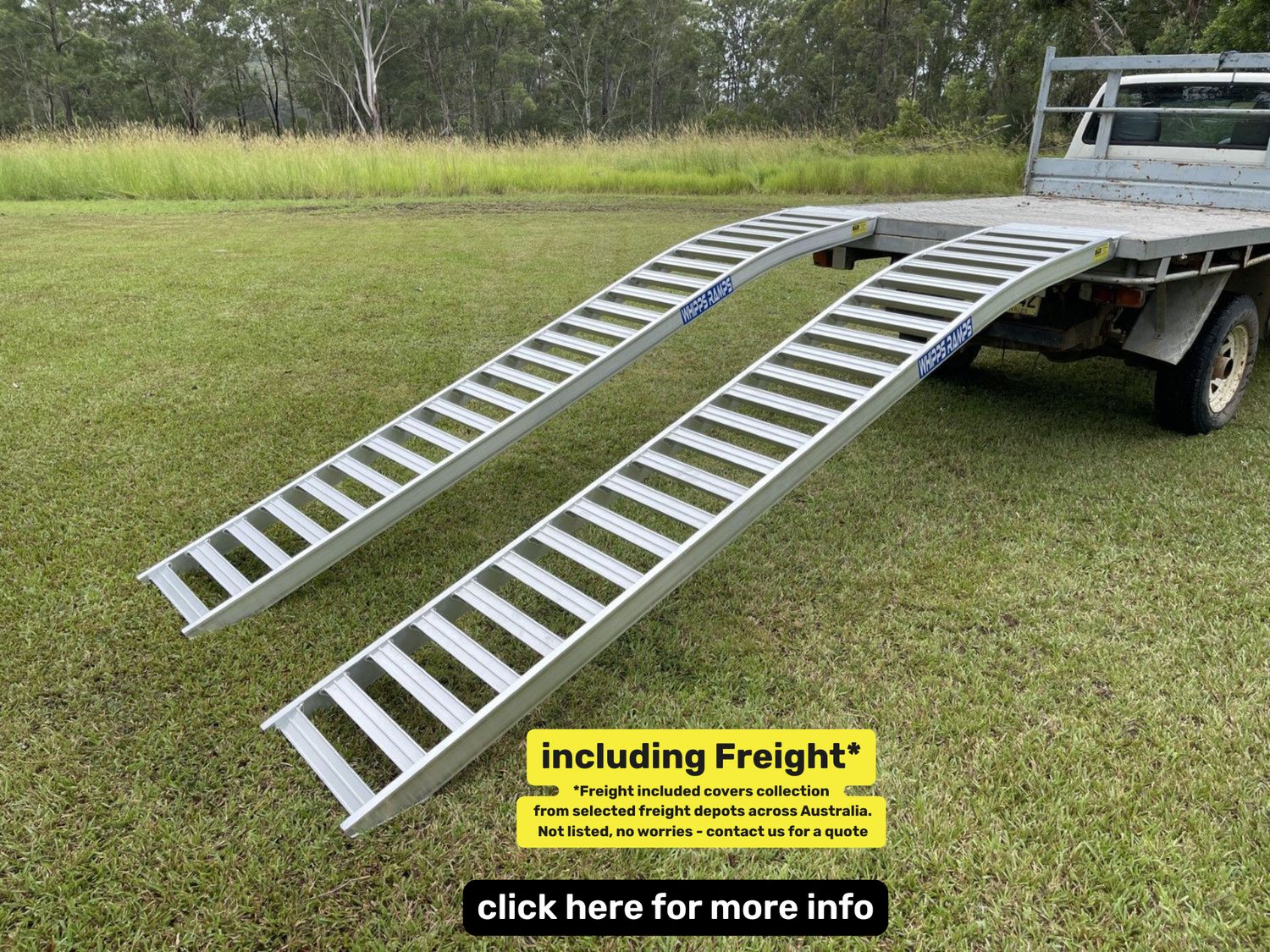

Pair (2) x Ramps – 3 metre curved loading ramps
- Capacity: 800 kg per pair (500 kg per ramp)
- Length: 3 metres, including top plate connection plate - suit medium/high trailers and trays (Note: 3.5 metres shown in photos)
- Top plate connection: choose between standard 95 mm (in photos) or optional 160 mm
- 400 mm track, 450 mm overall width ramps shown in product photos - please choose width when ordering
- Rung position: recessed = 3 mm
- Ramp Weight: from 12 kg per ramp
- Section Height: 76 mm
- Ramp height (at crest of curve): approximately 150 mm
- Material: Structural-grade aluminium (Australian extruded 6082-T6)
- Welding: 5183 structural welding wire
- Includes: 2 × securing pins for attaching to your tray, flatbed or trailer
- Load zero turn mowers, ride on mowers, low clearance machines, quad bikes and atv's -for higher ute trays and trailers
- Manufactured: Australian made – over 30 years of design, testing and fabrication experience
Built to perform in tough Australian conditions and trusted by contractors and machinery operators across the country.
Freight Options
Depot Collection
*Pricing covers collection from freight depots at the listed locations (see freight options/locations - dropdown menu). Some areas incur a surcharge. If your area is not listed please contact us, we freight Australia wide.
Pick Up from Whipps Ramps
Collect directly from our workshop in Cooperabung, NSW and save $$.
Use Your Own Freight Carrier – Surcharge Applies
If you prefer to arrange your own freight, a small handling surcharge applies.
Yes, we can arrange delivery outside of the listed depot locations and we offer Business delivery
Business delivery: we will need to verify address, you'll need a forklift to unload and have standard business operating hours - someone has to be available to unload
For a quote - Call: 02 6585 0944, text: 0481 359 124 or email: ramps@whipps.com.au
