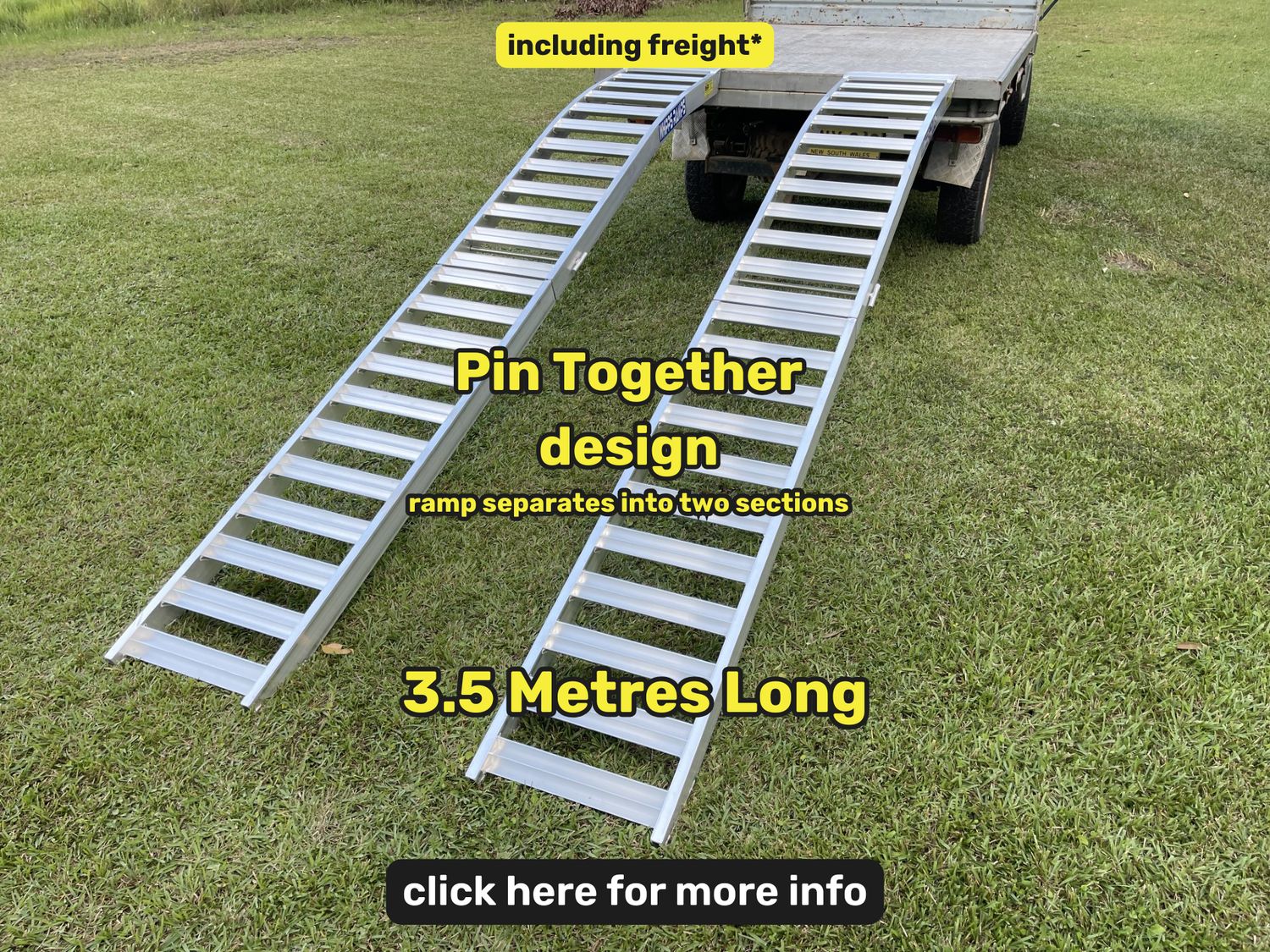

3.5 metres long - PT mower ramps - 1.5 t capacity - from $1670 inc GST

Ramp Specifications

Pair (2) x Ramps – 3.5 metre curved pin-together ramps

• Capacity: 1500 kg per pair (750 kg per ramp)
• Length: 3.5 metres, includes top plate connection - suit medium/high trailers and trays
• Each ramp separates into two sections with pin connection (ramps to be used connected only) approximately 1855 mm
• Top plate connection: choose between standard 95 mm or optional 160 mm (in photos)
• Width: Choose between 340 mm track and 400 mm track width - custom width also available
• Width: select option when buying (width options shown in photos)
• Rung position: recessed = 3 mm
• Ramp Weight: from 26kg per ramp (13kg per section)
• Section Height: 90 mm
• Material: Structural-grade aluminium (Australian extruded 6082-T6)
• Welding: 5183 structural welding wire
• Includes: 2 × securing pins for attaching to your tray, flatbed or trailer
• Load zero turn mowers, ride on mowers, low clearance machines, quad bikes and atv's -for higher ute trays and trailers
• Manufactured: Australian made – over 30 years of design, testing and fabrication experience

Built to perform in tough Australian conditions and trusted by contractors and machinery operators across the country.

Freight Options

Depot Collection
*Pricing covers collection from freight depots at the listed locations (see freight options/locations - dropdown menu).

• If your freight depot location is not listed, please choose - Freight depot - Not listed . Please nominate your closest major town or city to collect from in comments at checkout. Additional charges may be added after sale for some interstate, rural or remote areas. or Call us 02 6585 0944/text 0481 359 124 for more info

Pick Up from Whipps Ramps
Collect directly from our workshop in Cooperabung, NSW and save $$.

Use Your Own Freight Carrier – Surcharge Applies
If you prefer to arrange your own freight, a small handling surcharge applies.

Yes, we can arrange delivery outside of the listed depot locations and we offer Business delivery

Business delivery: we will need to verify address, you'll need a forklift to unload and have standard business operating hours - someone has to be available to unload

For a quote - Call: 02 6585 0944, text: 0481 359 124 or email: ramps@whipps.com.au
